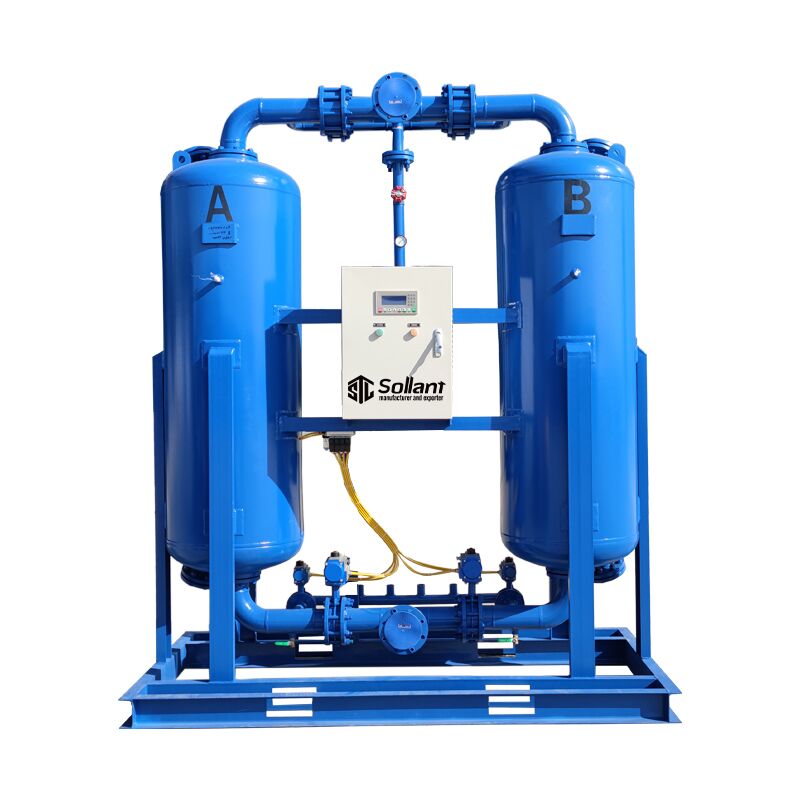

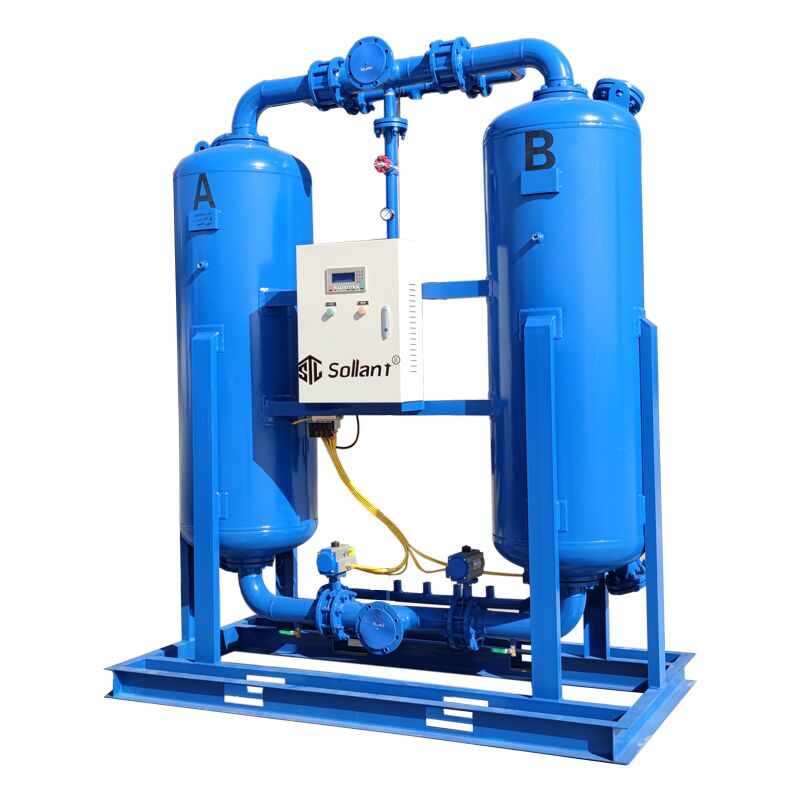

Product Name:  Micro-heat Adsorption Dryer, Air dryer for air compressor
Dew point: -20℃~40℃
Gas consumption: ≤7%
Working pressure: 5bar~10bar
Intake temperature: 2°C~38°C (MAX.40°C)
Ambient temperature: ≤40℃
Imported oil content: ≤0.1PPM
Adsorption cycle: 1H~6H
Adsorbent: activated alumina
Control mode: local control

Description

OPERATING PRINCIPLE



Micro-heat regenerative adsorption dryer is based on the heatless adsorption dryer, adding a heater, by increasing the temperature of the regeneration airflow, increasing the capacity of the regeneration airflow to water vapor, and increasing the temperature of the adsorbent to make the surface of the adsorbent Enhanced activity and easier regeneration. Through the above two aspects, while improving the regeneration effect, it can also reduce the regeneration air consumption, so as to achieve the purpose of saving compressed air and energy



FLOW CHART



PRODUCT ADVANTAGES



1. The high-efficiency wear-resistant adsorbent is selected, which not only has a large specific surface area and strong adsorption capacity but also has very good wear resistance, ensuring a stable dew point and not easy to pulverize after long-term use

2. Standard frame, prefabricated forklift holes and lifting rings, convenient for handling and lifting operations

3. High-performance butterfly valve, stainless steel valve plate, and high-efficiency pneumatic actuator to ensure a longer service life

4. PLC control text display, sensor monitoring, equipment operation visualization, stable and reliable

5. Remote monitoring and remote dry contact control

6. Stainless steel air distributor to ensure uniform air distribution, reliable and durable



TECHNICAL PARAMETER
