Description

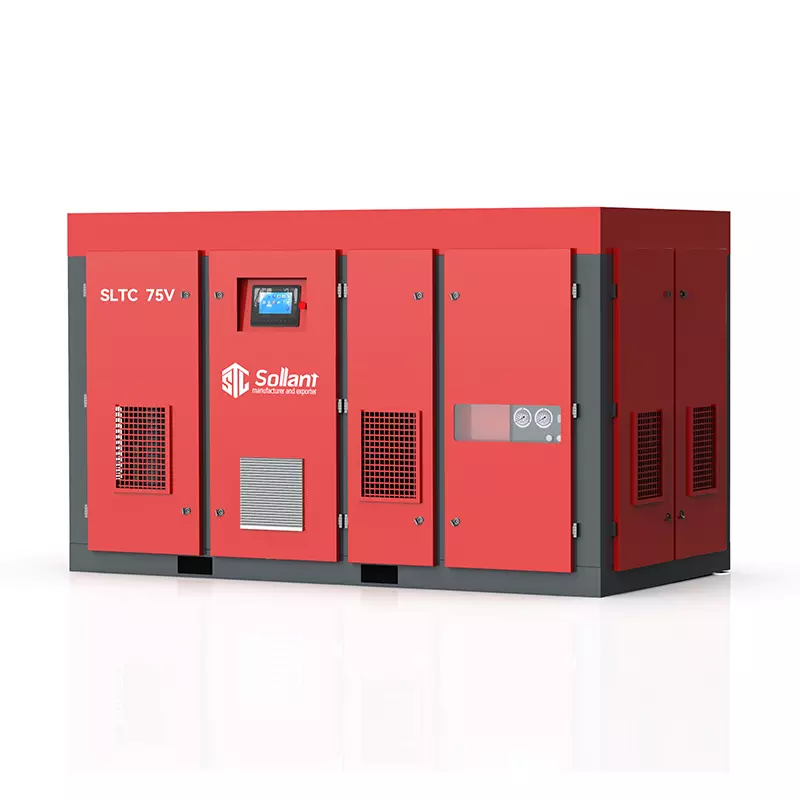

1Why Air Compressor with Dryer?
The integrated small screw air compressor is a highly popular industrial power device on the market.It integrates the screw main unit, motor, cooling system, intake system, control system, as well as the refrigeration dryer and filters into a compact chassis, achieving a ‘ready-to-use’ setup.
1.Integrated design with beautiful appearance, fewer parts, and connectors reduce the possibility of unit failure and leakage; direct discharge of dry compressed air, fully guarantee the quality of user terminal gas; greatly save customer installation costs and use space.
2.With new modular design structure, compact layout, ready to install and work.
3.After strict testing of the unit, the vibration value of the unit is far lower than the international standard.
4.Adopting a freeze dryer with excellent performance, a compact rotary refrigeration compressor, and a high cooling capacity configuration scheme to ensure reliable operation under high-temperature conditions.
2. Product Details:
New High-efficiency Airend
- New high-efficiency rotor-type line
- Stable and reliable performance
- Long service life
COOLERRefrigerated Dryer
- High efficiency plate-fin heat exchanger
- Low relative humidity of outlet air
- Professional water removal function
- Dew point 2-10°c
- 50% reduction in energy consumption compared to shelland tube dryers
- Optimised refrigeration system
- Safe and reliable
- Industrial grade refrigeration compressor
- Optimised pipework
- Optimised pipe connections,weld joints reduced to 5
Permanent Magnet Motor
- lE4 energy efficiency rating
- Oil-cooled permanent magnet variable frequency drive
- IP65 protection rating
Precision Filters
- Class C:Particles (water and oil mist) filtered out by high efficiency cyclone and collision separation: >3um
Oil content:≤5ppm - Class T:Main pipe filtration (coalescing type)High-efficiency degreasing filtration(coalescing type) Removal of particles(water and oil mist):>3um Oil content:≤1ppm
- Class A:High-efficiency degreasing filtration (coalescing type)
- Remove particles (water and oil mist):>0.0lum
- Oil content:≤0.01ppm
3.Technical Parameters:
