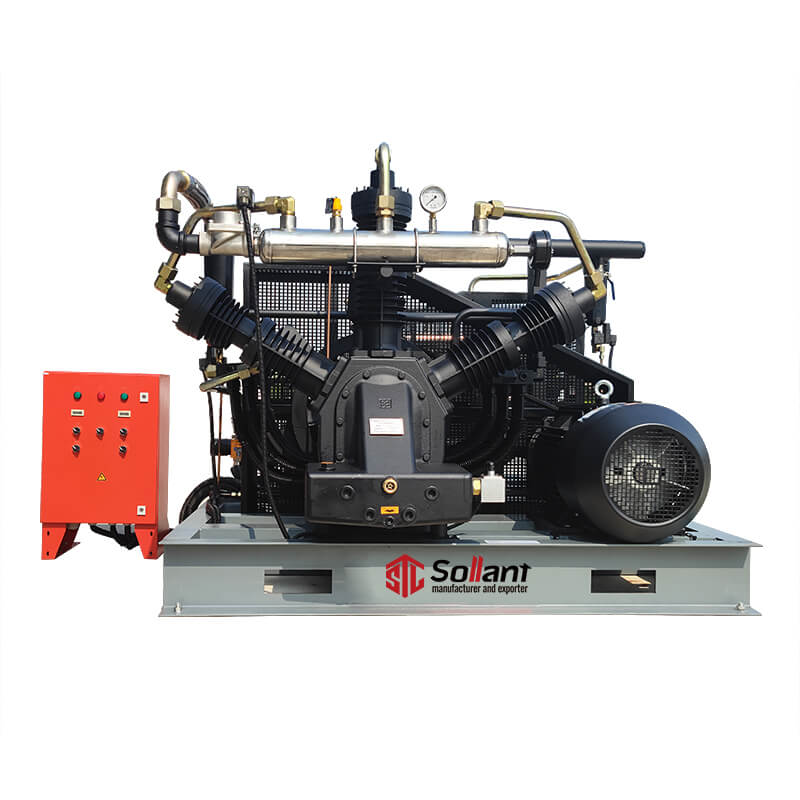

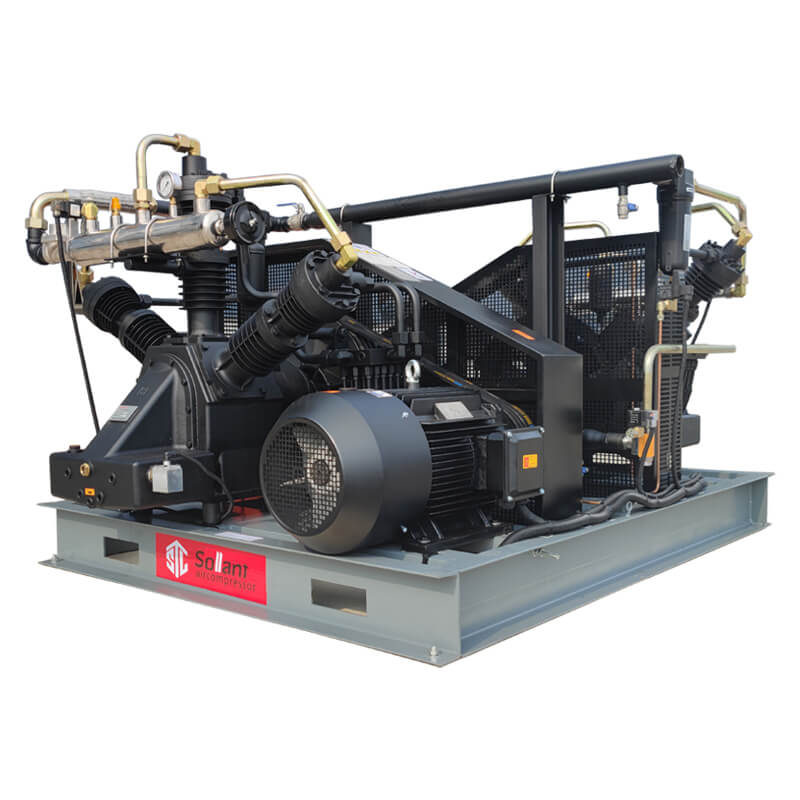

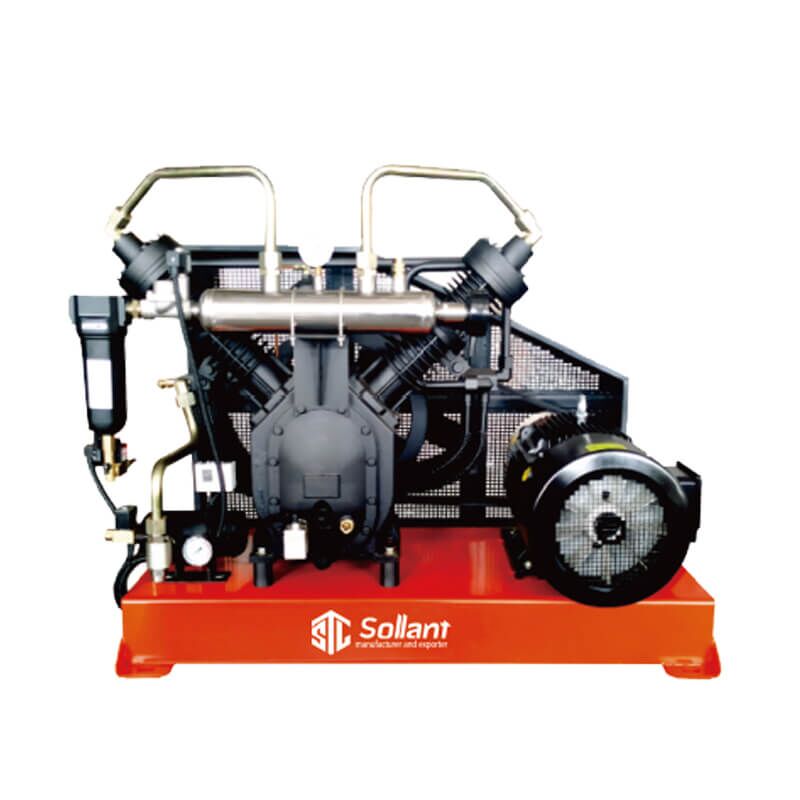

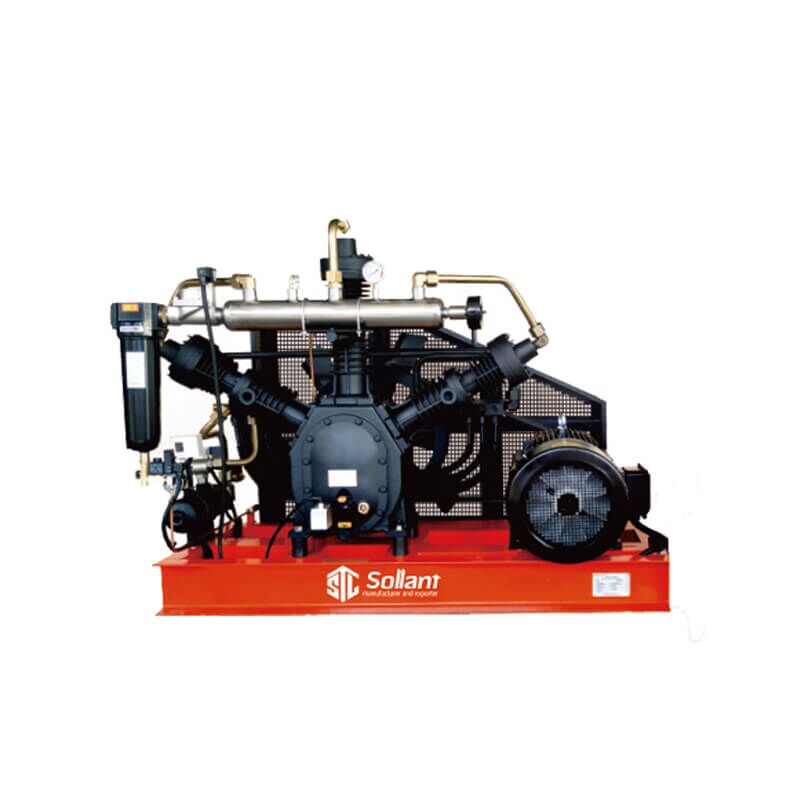

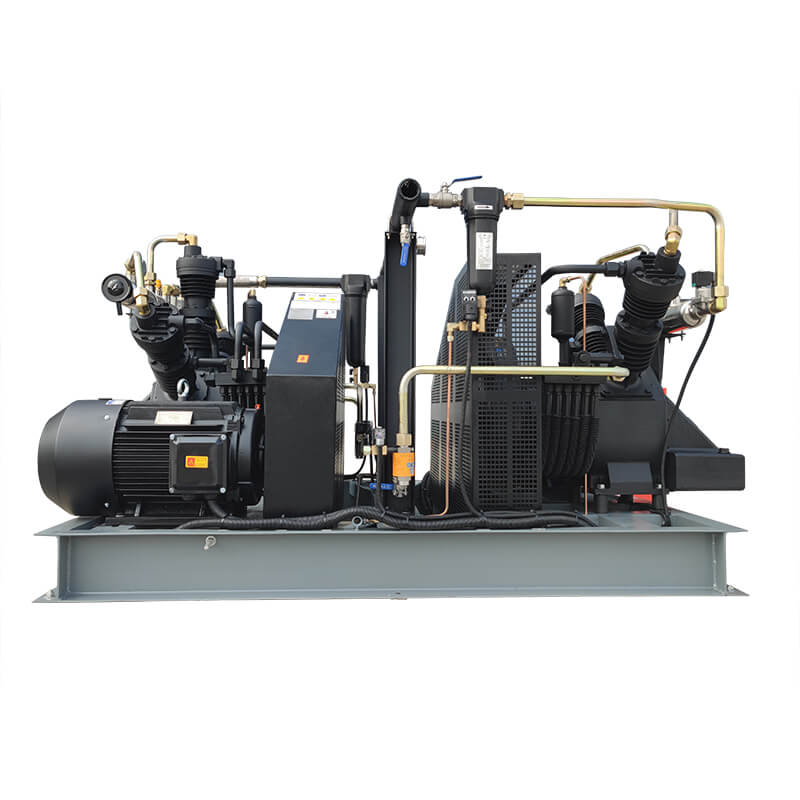

High Pressure Booster Air Compressor


Contact below if you would like to get a reply quicker.



Contact Sollant Team

Contact below if you would like to get a reply quicker.



Product Name: High-Pressure Booster Compressors, High-Pressure Air Compressors
Air Displacement: 2.0-24.0m³/min
Intake pressure: 1.0Mp
Exhaust pressure: 2.5-4.0Mpa
Power: 11-88kw
Warranty: 2 years
Certification: CE/ASME/ISO
Color: Optional&customization
Local Service Location: Philippines, Mexico, Russia


1. The Structure by into suction valve and exhaust valve combinations, the main features below: Air through the intake manifold valve cavity, along the tangent of the valve flow, the impact of approximate straight lines, air valves and flow resistance greatly reduces, so it could provide Low noise, long service life.

2. Because of the inlet valve inside the vertical spatial distribution, the inlet of the valve flow area increased, the valve flow rate and lower drag coefficient, inspiratory volume increased volume efficiency, and reduced energy consumption.

3. Intake and exhaust valves are the Reed Valve and Striptype Valves. Fixed unlimited free elastic beam opening and closing movements, without friction and clearance volume small. So the SAUER Patented Combined Air Valve has excellent dynamic performance and reliability.


Comparison chart of main performance indicators between combined air valve and ordinary annular valve

Features and advantages

●The air valve is the heart of the air compressor. The air valve adopts a patented combined air valve. It has the characteristics of high efficiency and long life, and the warranty is 2 years.

●The shock-resistant pressure gauge and safety valve device are equipped between the unit stages, which can be automatically discharged in case of overpressure to ensure safety.

●The control method for the unit to ensure no-load zero-pressure start: there is no diaphragm valve at the suction port, the suction port is closed within a few seconds when starting, and the sewage and exhaust valves are all opened when starting/stopping to ensure that the internal pressure is zero and the motor does not will start with the load.

●The big and small ends of the connecting rod of the main engine adopt special bearings, which have super strong load capacity, low friction power consumption and long service life.

●The unit adopts an air-cooled cooling system, equipped with high-efficiency intermediate and after-coolers. The whole machine has a compact structure, low speed and stable performance. The oil level of the main engine is equipped with a low oil level switch protection system, which detects the oil level in time, and shuts down immediately for protection in case of oil shortage.

●Automatic control of unit pressure: when the air supply pressure is lower than the set value, the unit starts automatically; when the air supply pressure reaches the set value, the unit automatically stops. When ensuring the user’s gas supply, the energy consumption is reduced.

●The unit adopts a modular design, which is convenient to form multiple units, which doubles the gas production and is convenient for users to choose.


Oilfree booster
