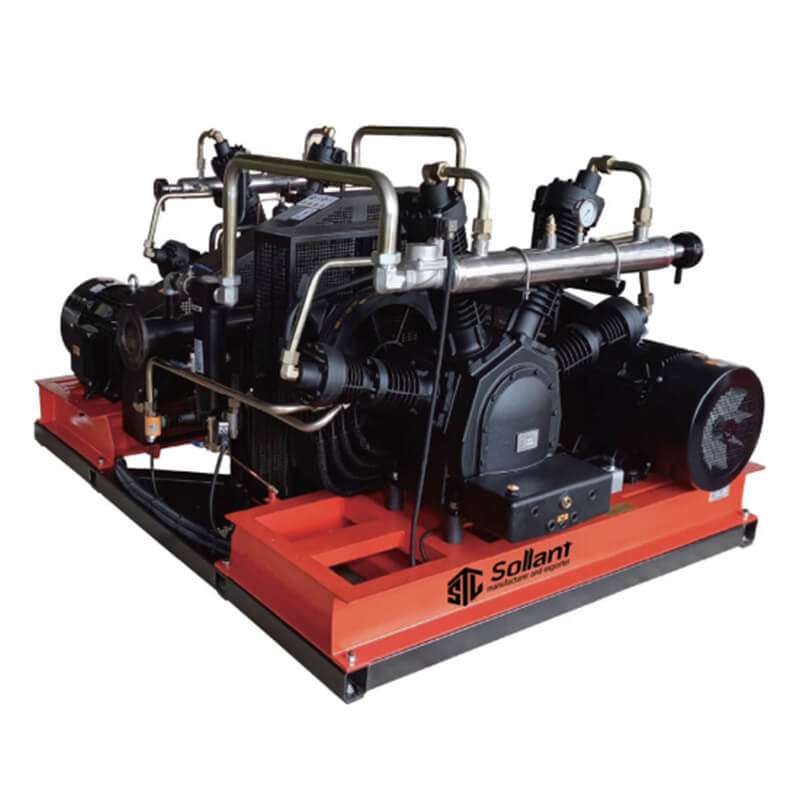

Product Name: High pressure compressors, High Pressure Reciprocating Air Compressor
Flow: 0.6-2.4m³/min
Pressure: 2.5-4.0Mpa
Power: 11-30kw
Service: 0EM/ODM available
Warranty: 2 years
Certification: CE/ASME/ISO
Color: Optional&customization
Local Service Location: Philippines, Mexico, Russia

Description

Features and Advantages

●The air valve is the heart of the air compressor. The air valve adopts a patented combined air valve. It has the characteristics of high efficiency and long life, and the warranty is 2 years.
●The shock-resistant pressure gauge and safety valve device are equipped between the unit stages, which can be automatically discharged in case of overpressure to ensure safety.
●The control method for the unit to ensure no-load zero-pressure start: there is no diaphragm valve at the suction port, the suction port is closed within a few seconds when starting, and the sewage and exhaust valves are all opened when starting/stopping to ensure that the internal pressure is zero and the motor does not will start with the load.
●The big and small ends of the connecting rod of the main engine adopt special bearings, which have super strong load capacity, low friction power consumption and long service life.
●The unit adopts an air-cooled cooling system, equipped with high-efficiency intermediate and after-coolers. The whole machine has a compact structure, low speed and stable performance. The oil level of the main engine is equipped with a low oil level switch protection system, which detects the oil level in time, and shuts down immediately for protection in case of oil shortage.
●Automatic control of unit pressure: when the air supply pressure is lower than the set value, the unit starts automatically; when the air supply pressure reaches the set value, the unit automatically stops. When ensuring the user’s gas supply, the energy consumption is reduced.
●The unit adopts a modular design, which is convenient to form multiple units, which doubles the gas production and is convenient for users to choose.
